WNS-C102X Differential Pressure Switch | SPDT | 0.03–0.2 MPa | HVAC & Refrigeration

Precision Differential Pressure Regulation for Critical Systems

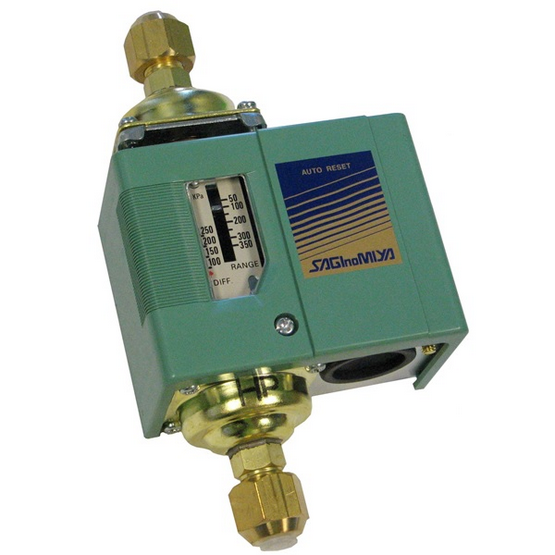

The WNS-C102X Differential Pressure Switch is a high-accuracy Japanese-made instrument designed for applications where the balance between two pressures is crucial for system performance. Commonly used in HVAC systems, ammonia handling, marine setups, and refrigeration, this SPDT (Single-Pole, Double-Throw) switch responds quickly to pressure differential changes to activate or deactivate electrical controls.

With an adjustable range of 0.03–0.2 MPa and factory settings ideal for standard operating thresholds, the WNS-C102X ensures reliable operation across water, air, or fluorinated refrigerant systems. A drip-proof enclosure is available for marine use, and an explosion-proof version is also offered for hazardous environments (upon request). Its compact, IP20-rated enclosure, durable construction, and standard mounting bracket make installation seamless in both new and retrofit systems.

Key Features

• SPDT Contact Mechanism for flexible control applications
• Differential Pressure Range: 0.03 to 0.2 MPa
• Factory Set Point: Off: 0.05 MPa | On: 0.02 MPa
• Maximum Working Pressure: 0.5 MPa
• Rated for Air, Water, and Refrigerants (including Ammonia)
• Operating Temperature: -20°C to +120°C fluid compatibility
• IP20 Enclosure (drip-proof or explosion-proof available upon request)
• Compact Dimensions: 147.2mm height × 38.5mm width
• Mounting Bracket Included
• Made in Japan – precision-built for industrial performance

Applications

• HVAC Pressure Control Loops
• Refrigeration Systems & Chillers
• Industrial Process Monitoring
• Compressor & Pump Safety Control
• Custom BMS and Control Panel Integration

Note: If you are interested in the WNS-C106X variant, please click 'Enquire Now' to get in touch with us.
