High-Accuracy Multifunction Temp & RH Transmitter for Industrial & Commercial Monitoring
The THS30X Series delivers reliable and high-precision temperature and humidity monitoring across a variety of environmental control applications. Designed for versatility and durability, the THS30X Series offers four mounting configurations to meet a wide range of installation requirements:
With support for analog outputs (4–20 mA / 0–10 V) and RS-485 Modbus RTU communication, the THS30X Series is ideal for integration into advanced HVAC systems, cleanrooms, precision agriculture, pharmaceutical environments, data centers, and industrial automation networks.
Key Features
- Sensor Type: Capacitive Humidity Sensor + Pt100 (Class A)

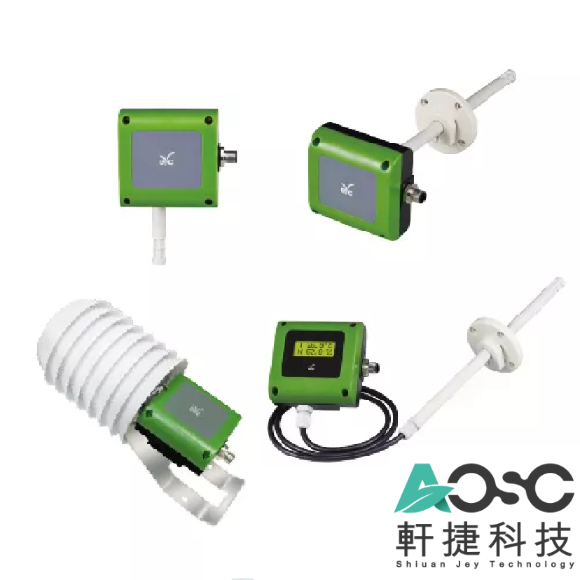

- Mounting Styles: Wall / Duct / Remote Probe / Outdoor
- Measuring Range: -40 to +80°C | 0 to 100% RH
- Output Options: 4–20 mA, 0–10 V, RS-485 Modbus RTU
- Accuracy: ±0.2°C | ±1.8% RH
- Power Supply: 8–35 V DC / 12–30 V AC
- Display: Backlit LCD, dual-line (optional)
- IP Rating: Housing IP65 | Probe IP20
- Filter: Plastic membrane (standard), sintered optional
- Software: Free configuration software for calibration, logging, and output control
Applications
- HVAC & Building Automation
- Hospitals, Cleanrooms & Labs
- Warehouses, Cold Rooms, Storage Facilities
- Greenhouses, Indoor Agriculture, Nurseries
- Food & Beverage Processing
- Pharmaceutical & Chemical Industries
- Weather Stations, Pools, Environmental Chambers
Models
|
Model |
Mounting Type |
Temp Range |
Display |
Typical Use Case |
|

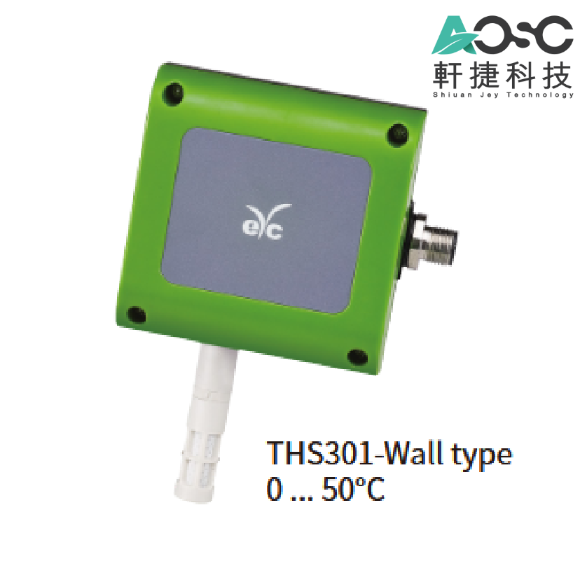

THS301 |
Wall Type |
0 to 50°C |
Optional |
Office rooms, labs, indoor control |
|

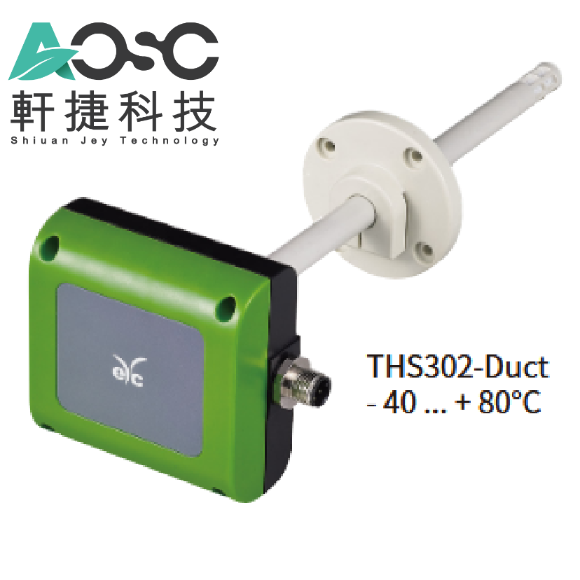

THS302 |
Duct Type |
–40 to +80°C |
Optional |
HVAC air ducts, ventilation systems |
|

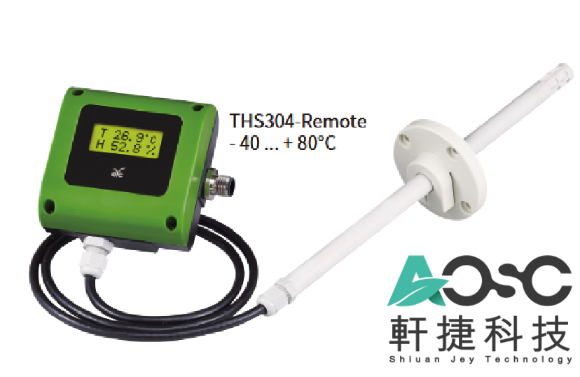

THS304 |
Remote Probe |
–40 to +80°C |
Optional |
Cold storage, tanks, isolated zones |
|

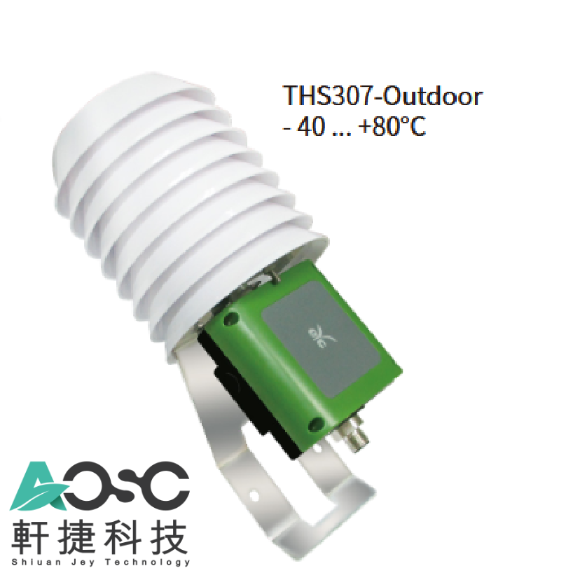

THS307 |
Outdoor Housing |
–40 to +80°C |
Optional |
External walls, greenhouses, pools |
Note: This product is built to order and not available for direct online purchase.
Please refer to the Datasheet below for detailed specifications and available configurations.
Once reviewed, click “Enquire Now” to contact us. We’ll help match the right model to your installation type, output requirements, and display preferences.
