THS130 / THS140 Temperature & Humidity Transmitter | Indoor & Duct Mount | 4–20 mA / 0–10 V Output
THS130 / THS140 Temperature & Humidity Transmitter | Indoor & Duct Mount | 4–20 mA / 0–10 V Output
Couldn't load pickup availability
Cost-Effective Temperature & Humidity Monitoring for Indoor HVAC
The THS130 / THS140 Series provides a cost-effective and dependable solution for accurate temperature and humidity monitoring in indoor climate control environments.
Equipped with a high-precision MEMS sensor, this compact and efficient transmitter is ideal for integration into building automation, HVAC control systems, and ventilation monitoring. Its durable design and reliable performance make it an excellent choice for commercial and light industrial applications.

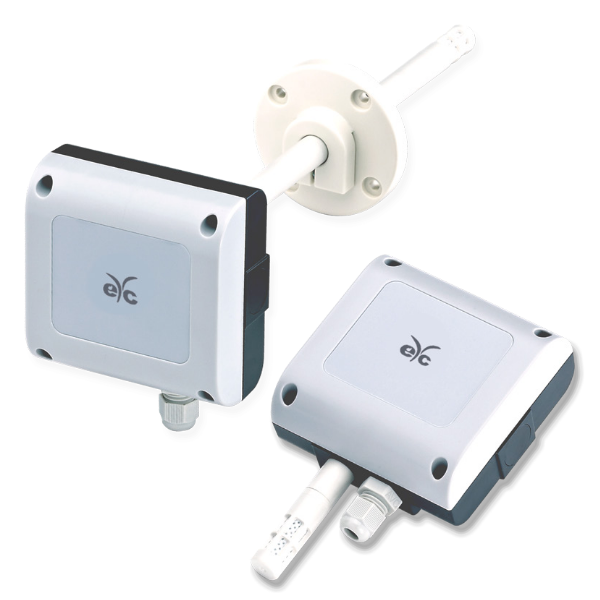

Choose THS130 for indoor wall-mounting, or THS140 for duct/flange-mounted HVAC installations.
Key Features
- Sensor Type: MEMS
- Temperature Range: 0 to 50°C
- Humidity Range: 0 to 100% RH (non-condensing)
- Accuracy: ±0.5°C (Temp) | ±3% RH (Humidity)
- Output Options: 4–20 mA or 0–10 V
- Signal Connection: 2-wire or 3-wire
- Response Time: ≤10 sec (t63)
- Sampling Time: Approx. 3 sec
-
Power Supply:
- DC: 15–35 V / 19–35 V
- AC: 24 V ±10%
- Housing: PC UL94V-2 rated plastic
- Protection: IP54 | Reverse polarity, over-voltage, and short-circuit
Applications
- HVAC & Ventilation Monitoring
- Building Automation Systems
- Hospitals, Labs & Clean Rooms
- Storage Facilities & Indoor Warehouses
- Commercial and Industrial Facilities
Available Variants
|
Model |
Mounting Style |
Specification |
|
THS130-A-6-3-30-N |
Wall Mount |
– Output: 3-Wire (0–10 V) |
|
THS140-A-6-3-30-N |
Duct Mount |
– Output: 3-Wire (0–10 V) |
Note: This product is customizable and can be built to order.
Please refer to the datasheet below for specifications and available configurations.
Once reviewed, click “Enquire Now” - we’ll help you select the right model based on your installation type and output requirements.
