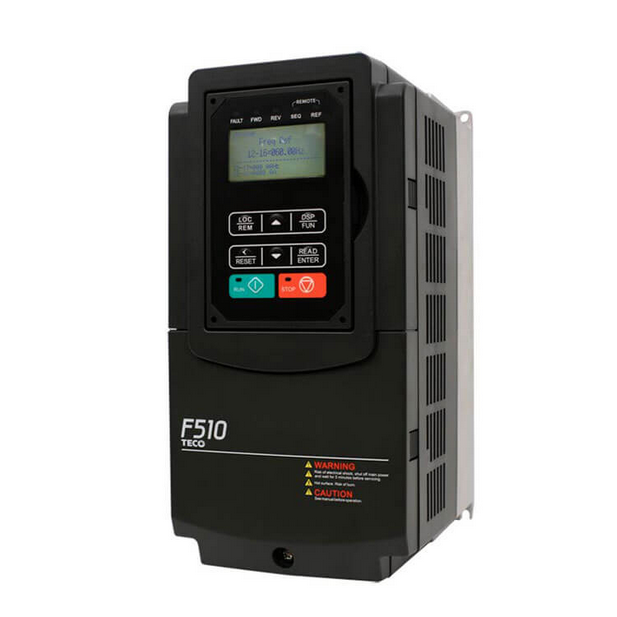

TECO F510 Series Variable Frequency Drives (VFD)
TECO F510 Series Variable Frequency Drives (VFD)
Price on Request
Important: This product is built to order and not available for direct online purchase.
Lead times may vary depending on supplier inventory. In some cases, components may need to be sourced from overseas before being assembled in Taiwan and imported to Australia.
As an Australian business, we handle the entire import process—no foreign currency, no customs forms. Just local delivery and reliable service.
Enhanced HVAC and Industrial Drive with Integrated STO
The TECO F510 Series is an enhanced, energy-efficient VFD designed for reliable performance in HVAC, pump, and industrial process control applications.
Built for precise speed regulation and safety, the F510 includes an optional integrated Safe Torque Off (STO) function compliant with EN ISO 13849-1 PL d / SIL 2, providing fast, contactor-free motor protection.
Manufactured by TECO Electric & Machinery Co., Ltd. (Taiwan), the F510 supports both constant torque and variable torque applications, with control modes including V/F, sensorless vector (SLV), and permanent magnet SLV (PMSLV).
With flexible expansion options, built-in RS-485 (Modbus/BACnet/Metasys N2), and compatibility with fieldbus modules like EtherNet/IP, PROFIBUS, CANopen, and DeviceNet, the F510 is ideal for modern BMS and industrial systems seeking intelligent automation and energy savings.
Key Features
- Advanced control modes: V/F, SLV, PMSLV with Space Vector PWM
- Built-in RS-485 communication: Supports Modbus, BACnet MS/TP, and Metasys N2
- Optional Safe Torque Off (STO): PL d / SIL 2 certified
-
Expansion slots:
- Communication cards (EtherNet/IP, PROFIBUS, DeviceNet, CANopen)
- I/O and pump control cards (up to 8 pumps)
- DC 24 V Power Card for off-line parameter setup
- Dual PID control and built-in simple PLC function
- Smart braking & energy-saving modes for variable-torque fans and pumps
- Auto-tuning, DC braking, and momentary power loss restart
- Selectable sink/source digital inputs (PNP/NPN)
- Compact IP20 / IP21 design with modular accessories and Bluetooth keypad
Applications
- HVAC air handling and fan systems
- Building management and pressure control
- Water and wastewater pumping
- Irrigation and booster systems
- Conveyor, compressor, and process automation
- Industrial energy-saving retrofits
Models
|
Model |
Input Voltage |
Motor Power |
IP Rating |
STO |
Notes |
|
F510-2002-E3 |
240 V 3-phase |
1.5 kW (2 HP) |
IP20 |
Built-in |
Standard model |
|
F510-2003-E3 |
240 V 3-phase |
2.2 kW (3 HP) |
IP20 |
Built-in |
Standard model |
|
F510-2005-E3 |
240 V 3-phase |
3.7 kW (5 HP) |
IP20 |
Built-in |
Standard model |
|
F510-2008-E3 |
240 V 3-phase |
5.5 kW (7.5 HP) |
IP20 |
Built-in |
Standard model |
|
F510-2010-E3 |
240 V 3-phase |
7.5 kW (10 HP) |
IP20 |
Built-in |
Standard model |
|
F510-2015-E3 |
240 V 3-phase |
11 kW (15 HP) |
IP20 |
Built-in |
Standard model |
|
F510-2020-E3 |
240 V 3-phase |
15 kW (20 HP) |
IP20 |
Built-in |
Standard model |
|
F510-4002-E3 |
480 V 3-phase |
1.5 kW (2 HP) |
IP20 |
Built-in |
Standard model |
|
F510-4003-E3 |
480 V 3-phase |
2.2 kW (3 HP) |
IP20 |
Built-in |
Standard model |
|
F510-4005-E3 |
480 V 3-phase |
3.7 kW (5 HP) |
IP20 |
Built-in |
Standard model |
|
F510-4008-E3 |
480 V 3-phase |
5.5 kW (7.5 HP) |
IP20 |
Built-in |
Standard model |
|
F510-4010-E3 |
480 V 3-phase |
7.5 kW (10 HP) |
IP20 |
Built-in |
Standard model |
|
F510-4015-E3 |
480 V 3-phase |
11 kW (15 HP) |
IP20 |
Built-in |
Standard model |
|
F510-4020-E3 |
480 V 3-phase |
15 kW (20 HP) |
IP20 |
Built-in |
Standard model |
(Note: The above models are what is currently available for direct quotation. For other models please refer to below)
Note: This product is built to order and not available for direct online purchase.
Please refer to the Datasheet below for detailed specifications and available configurations.
Once reviewed, click “Enquire Now” to contact us. We’ll help match the right model to your installation type, output requirements, and display preferences.
