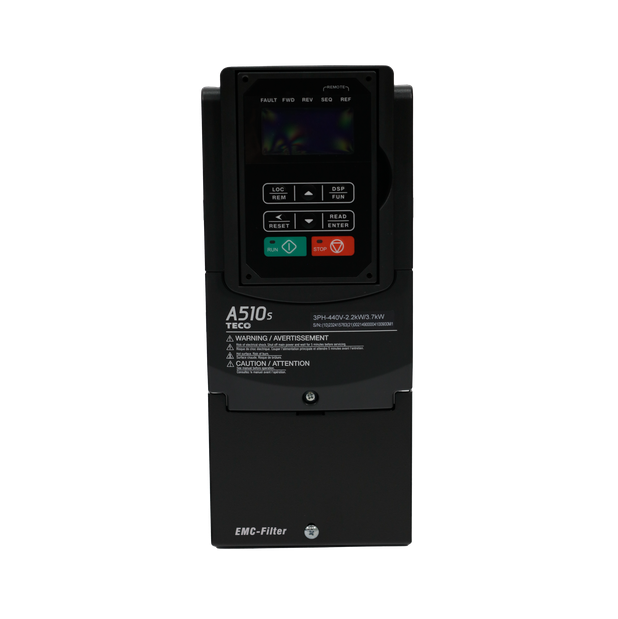

TECO A510s Series Variable Frequency Drives (VFD)
TECO A510s Series Variable Frequency Drives (VFD)
Price on Request
Important: This product is built to order and not available for direct online purchase.
Lead times may vary depending on supplier inventory. In some cases, components may need to be sourced from overseas before being assembled in Taiwan and imported to Australia.
As an Australian business, we handle the entire import process—no foreign currency, no customs forms. Just local delivery and reliable service.
Advanced Current Vector Control Drive for Precision Industrial Applications
The TECO A510s Series is an advanced current vector control drive designed for high-performance motor control, superior torque accuracy, and faster commissioning in demanding industrial environments.
Powered by TECO’s 5th-generation processing core, the A510s delivers up to 200% starting torque at 0.5 Hz, ensuring stable operation even under extreme load conditions.
With enhanced sensorless vector (SLV) and sensor vector (SV) modes, the A510s supports both induction (IM) and permanent magnet (PM) motors, achieving smooth control, energy savings, and high efficiency. Built-in features such as Soft PWM motor noise reduction, intelligent overvoltage suppression, and PCB conformal coating (IEC 60721-3-3 Class 3C2) make it suitable for HVAC, BMS, and heavy industrial applications.
Manufactured in Taiwan and globally certified (UL, CE, RoHS), the A510s is available in 200 V and 400 V classes, supporting single or three-phase inputs up to 425 HP (315 kW).
Key Features
- Advanced current vector control (SLV / SV / PMSLV) for IM and PM motors
- 200 % starting torque at 0.5 Hz with fast auto-tuning
- Enhanced 5th-generation processor for 100 % faster motor response
- Soft PWM technology – reduced EMI and extended motor lifespan
- Intelligent overvoltage suppression – no external braking unit required
- Built-in PLC logic and RS-485 (Modbus RTU) communication
- Optional encoder feedback, EtherNet/IP, PROFIBUS, DeviceNet, CANopen, and EtherCAT modules
- Heavy Duty (HD) and Normal Duty (ND) operation modes
- Auto-tuning, torque control, slip compensation, and zero-servo holding torque
- Conformal coated PCBs, external heat sink, and replaceable cooling fan
- Certified: UL508C, CE, RoHS, EN61800-3, and EN61508 SIL 2
Applications
- HVAC fan, blower, and pump systems
- Conveyors and material handling
- Water and wastewater treatment
- Packaging and process automation
- Machine tools and textile machinery
- Industrial compressors and energy-saving retrofits
Models
|
Model |
Input Voltage |
Motor Power |
Rated Output Current |
IP Rating |
Notes |
|
A510-4040-SE3-B |
480 V 3-phase |
30 kW (40 HP) |
60 A |
IP20 |
Enhanced current-vector model |
(Note: The above models are what is currently available for direct quotation. For other models please refer to below)
Note: This product is built to order and not available for direct online purchase.
Please refer to the Datasheet below for detailed specifications and available configurations.
Once reviewed, click “Enquire Now” to contact us. We’ll help match the right model to your installation type, output requirements, and display preferences.
