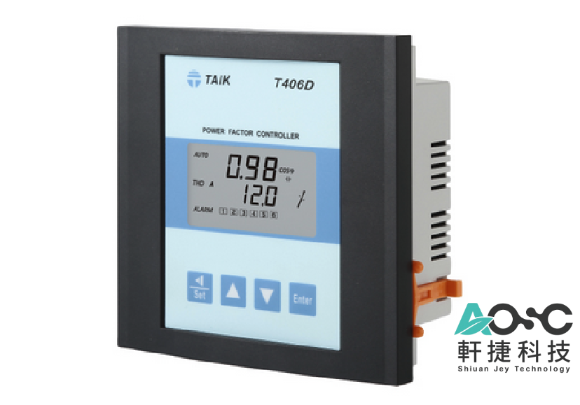

T4 Series Power Factor Controller | TAIK Electric | 6, 7, 12, or 14-Step | DIN Panel Mount | ISO Certified
T4 Series Power Factor Controller | TAIK Electric | 6, 7, 12, or 14-Step | DIN Panel Mount | ISO Certified
Price on Request
Important: This product is built to order and not available for direct online purchase.
Lead times may vary depending on supplier inventory. In some cases, components may need to be sourced from overseas before being assembled in Taiwan and imported to Australia.
As an Australian business, we handle the entire import process—no foreign currency, no customs forms. Just local delivery and reliable service.
Intelligent Reactive Power Control for Power Efficiency
The T4 Series is a microprocessor-based power factor controller designed to optimize power factor in low-voltage systems across industrial and commercial sites. Whether for switchboards in factories or energy management panels in large buildings, the T4 ensures efficient capacitor bank control, helping reduce reactive energy charges, enhance power stability, and maintain system compliance.
Available in 6, 7, 12, or 14 relay steps, the T4 Series supports automatic, manual, and test modes. making it suitable for both new and retrofit power factor correction (PFC) installations.
It provides real-time monitoring of key parameters including voltage, current, frequency, reactive energy, and power factor. Alarm functions are built in for overvoltage, undervoltage, and phase loss detection, ensuring safe and continuous operation.
The DIN 144 × 144 mm format makes it easy to integrate into standard panel cutouts, while a compact design with low insertion depth simplifies mounting in tight enclosures.
Key Features
- Automatic Power Factor Correction with 6, 7, 12, or 14 relay steps
- Real-Time Display: Voltage, current, power factor, frequency, and reactive power
- DIN Panel Mount (144 x 144 mm) with clear front interface
- Flexible Control: Automatic, manual, and test modes
- Built-in Alarms: Overvoltage, undervoltage, phase loss
- Fast Response Time for reactive load variations
- Low Insertion Depth: Compact installation
- CE Marked and ISO 9001:2008 Certified
Applications
- Automatic Capacitor Bank Control
- Industrial Power Factor Correction Panels
- Commercial Buildings and Shopping Centres
- HVAC System Panels with Reactive Loads
- Switchboards in Manufacturing Facilities
- Energy Optimization in Low-Voltage Networks
- Generator and UPS Load Balancing
Models
|
Model |
Outputs |
FREQUENCY RANGE |
input voltage |
|
T406D |
6 |
45 ~ 65 Hz |
AC 220V/380V |
|
T407M |
7 |
45 ~ 65 Hz |
AC 220V/380V |
|
T412D |
12 |
45 ~ 65 Hz |
AC 90~550V |
|
T414M |
14 |
45 ~ 65 Hz |
AC 90~550V |
