T330 Compact Power Meter | True RMS | Dual Energy | Modbus RTU | DIN96 Panel Mount

Compact, Dual-Energy Power Monitoring for Utility and Generator Loads

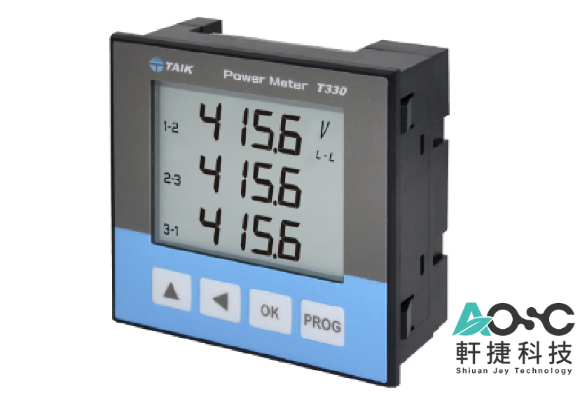

The T330 Power Meter is a smart, space-saving instrument built for real-time monitoring of dual energy sources, utility and backup generator. With separate registers for energy tracking, it enables accurate load separation, generator runtime analysis, and cost allocation in hybrid power environments.

Ideal for facilities with emergency power systems, the T330 measures true RMS values across all major electrical parameters, including total harmonic distortion (THD) up to the 31st order. It supports multiple wiring configurations (1P2W, 1P3W, 3P3W, 3P4W) and is designed to integrate easily into SCADA, EMS, and BMS platforms via Modbus RTU or optional pulse output.

Its DIN96 panel mount format features a tool-less, clip-free installation, perfect for tight control panels and electrical enclosures.

Key Features

• True RMS Measurement for voltage, current, power, and energy
• Dual Energy Measurement: Utility & Generator registers
• THD Monitoring up to the 31st harmonic
• Wiring Modes Supported: 1P2W, 1P3W, 3P3W, 3P4W
• Modbus RTU RS-485 Communication or Pulse Output
• Actual/Max Demand Monitoring for power and current
• Compact & Lightweight Design with no mounting clips required
• ON-Hour Indication: Tracks total time powered
• Optional Generator Signal Input (18–60V DC or 80–300V AC)
• DIN96 Panel Mount (96 × 96 mm)
• CE Certified

Applications

• Utility vs Generator Energy Monitoring
• Panel Builders & Switchboard Integration
• Commercial Building Energy Management
• Genset Load Monitoring
• Factory Sub-Metering
• Backup Power Verification Systems
• Data Logging & Demand Analysis via Modbus RTU
