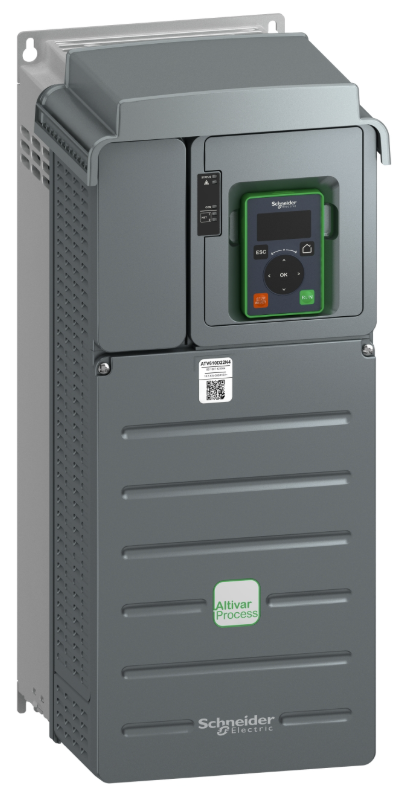

Schneider Electric Easy Altivar 610 Series Variable Frequency Drives (VFD)

Robust and Efficient Drives for Fans, Pumps, and HVAC Applications

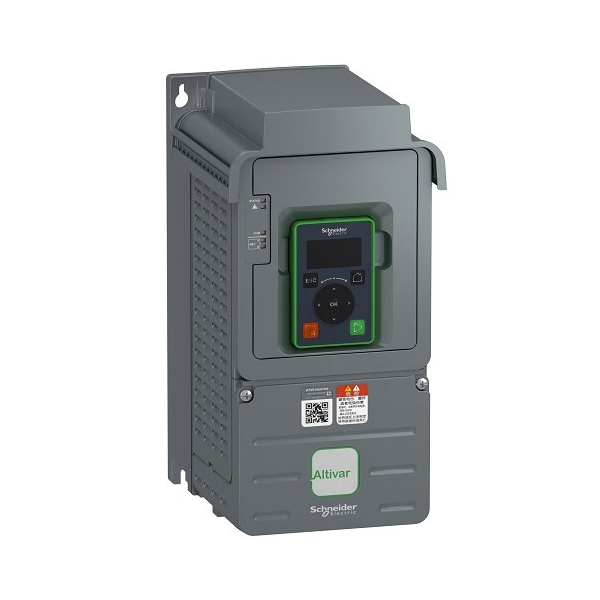

The Schneider Electric Easy Altivar 610 (ATV610) Series is an industrial-grade range of variable frequency drives designed for reliable speed and torque control of asynchronous and synchronous motors.
Engineered for HVAC, water treatment, and material handling, the ATV610 delivers dependable operation in harsh conditions with built-in Modbus RTU communication, integrated EMC filter (C3), and IP20 cabinet mounting.

Built on Schneider Electric’s global Altivar platform, the Easy 610 simplifies commissioning through intuitive configuration, robust motor protection, and adaptive torque control.
It’s an ideal solution for OEMs, system integrators, and facility engineers seeking energy efficiency, proven reliability, and long service life in standard-duty and heavy-duty operations.

Key Features

• Wide power range: 0.75 kW – 90 kW (1 HP – 125 HP), 380 – 460 V three-phase
• Built-in EMC filter to IEC 61800-3 C3 for up to 50 m cable
• Control modes: V/F, variable torque, constant torque, and optimized torque
• Modbus RTU (RS-485) standard communication
• Optional expansion cards for Profibus DP V1, analog/digital I/O, and relay outputs
• Integrated motor protection: over-current, over-voltage, over-temperature, and phase-loss
• 16 preset speeds, adjustable accel/decel ramps (0.01 – 9000 s)
• Thermal management via forced-convection cooling
• Ambient operation: –15 °C to +45 °C (no derating) / +60 °C (with derating)
• Conformal-coated PCBs (IEC 60721-3-3 Class 3C3) for dust and chemical resistance
• Certified: CE | RCM | IEC 61800-3 | IEC 61800-5-1

Applications

• HVAC fan and pump systems
• Water and wastewater treatment
• Building and energy management
• Industrial compressors and blowers
• Conveyors and material-handling systems

• Irrigation and pressure-control systems
