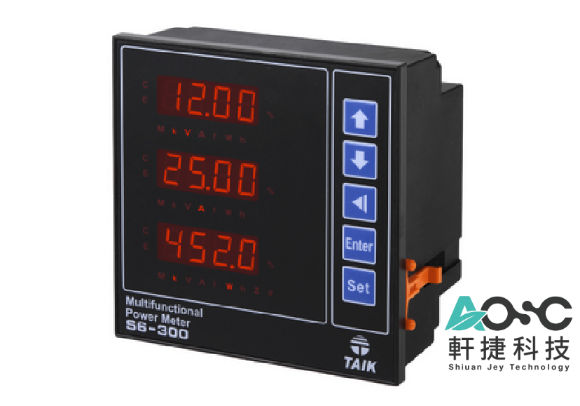

S6-300 Multifunction Power Meter | True RMS | Harmonics + Demand + Modbus | DIN144 Panel | TAIK Electric

High-Precision Multifunction Meter for Total Power Quality Monitoring

The S6-300 is an advanced multifunction power meter engineered for accurate energy monitoring, power quality diagnostics, and real-time load analysis. Designed to meet the demands of industrial plants, commercial buildings, and infrastructure upgrades, it combines high-resolution measurement with SCADA/BMS integration capabilities.

With ±0.25% true RMS accuracy and harmonic analysis up to the 31st order, the S6-300 helps facility operators optimize performance, detect anomalies, and reduce energy waste. A built-in real-time clock (RTC) with battery backup ensures historical data integrity, even during outages.

Its modular I/O options support seamless system integration and versatile outputs for control and analytics:

• RS-485 or RS-232 (Modbus RTU)
• Optional dual 4–20mA analog outputs
• Optional dual relay outputs for alarms or energy pulse control

Built in a standard DIN 144×144 mm panel-mount format, the S6-300 is suitable for new installations or retrofits in any wiring configuration—1P2W, 1P3W, 3P3W, or 3P4W.

Key Features

• True RMS Measurement with 0.25% accuracy
• Supports Voltage, Current, Power (W, Var, VA), PF, Frequency, Energy
• Harmonic Analysis up to 31st Order (V & A)
• Max Demand Monitoring (A, W) with built-in Real-Time Clock
• Dual Relay Outputs for Alarm or Energy Pulse (programmable)
• Dual Analog 4–20mA Outputs (option)
• RS-485 or RS-232 Communication with Modbus RTU
• LED Display: High-brightness, 3-row, 4-digit display + energy counters
• CT/VT Programmable Ratios
• Neutral Current Display & Min/Max Value Memory
• Panel Mount DIN 144×144 mm | CE Certified

Applications

• Industrial Load Monitoring and Power Analysis
• Energy Management Systems (EMS)
• SCADA or PLC Integration for Utility Control
• Power Factor & Harmonic Diagnosis
• Factory Power Distribution Panels
• Commercial Buildings with Generator Backup
• Renewable Energy Plants (Solar, Wind)
• Facilities Requiring Max Demand Tracking
