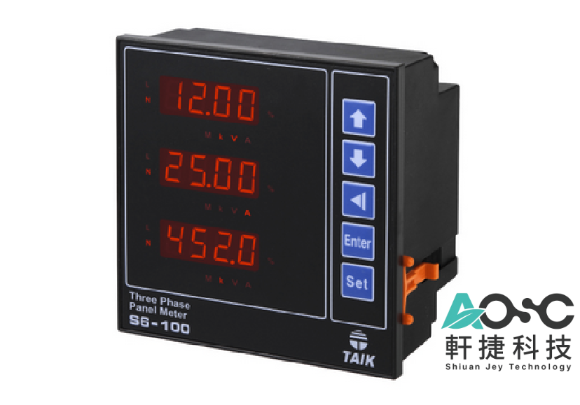

S6-100 Three-Phase Digital Panel Meter | True RMS | RS-485 & Relay Output | DIN 144x144 | TAIK Electric
S6-100 Three-Phase Digital Panel Meter | True RMS | RS-485 & Relay Output | DIN 144x144 | TAIK Electric
Price on Request
Important: This product is built to order and not available for direct online purchase.
Lead times may vary depending on supplier inventory. In some cases, components may need to be sourced from overseas before being assembled in Taiwan and imported to Australia.
As an Australian business, we handle the entire import process—no foreign currency, no customs forms. Just local delivery and reliable service.
High-Accuracy Power Measurement with Harmonics and Modular Outputs
The S6-100 Series is a precision-engineered digital panel meter designed for reliable three-phase power monitoring in industrial and commercial electrical systems. Built for performance-critical environments, it delivers true RMS measurements with ±0.2% full-scale accuracy, ideal for power quality diagnostics, system health checks, and real-time energy awareness.
Supporting key parameters like voltage, current, frequency, and power, the S6-100 also features neutral current indication and configurable CT/VT ratios for flexible deployment across a wide range of panelboard configurations.
With optional RS-485 Modbus RTU communication and programmable relay outputs, the S6-100 easily integrates into SCADA, BMS, or automated control systems. Non-volatile memory ensures all settings are retained, even after a power loss, making it a dependable choice for long-term monitoring.
Key Features
- 0.2% Accuracy True RMS measurement for current and/or voltage
- LED Display: Red 3-row 4-digit display with 14.2mm height
- Programmable CT/VT Ratios for scalable system integration
- Neutral Current Indication
- Memory Retention: Stores settings for 10+ years
- RS-485 Modbus RTU Communication (optional)
- Relay Output Alarms for critical thresholds (optional)
- Compact DIN Size: 144 × 144 mm with 138 × 138 mm panel cutout
- Wide Power Supply Options: AC 110/220V or DC 110V/24V
- Built to IEC Standards: EMC, surge, dielectric, transient immunity
Applications
- Industrial Electrical Panels
- Power Distribution Monitoring
- SCADA/PLC Energy Reporting
- HVAC and Building Automation Systems
- Generator & Utility Energy Supervision
- Low-voltage and Medium-voltage Switchboards
- Power Factor Correction Panels
Please refer to the Datasheet below for detailed specifications and available configurations.
Once reviewed, click “Enquire Now” to contact us. We’ll help match the right model to your installation type, output requirements, and display preferences.
