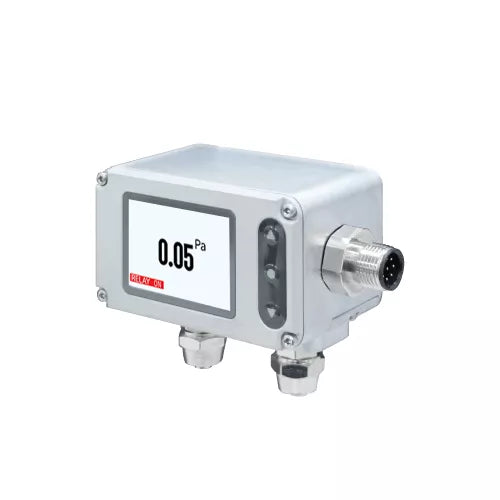

PMM06-D Differential Pressure Transmitter
PMM06-D Differential Pressure Transmitter
Price on Request
Important: This product is built to order and not available for direct online purchase.
Lead times may vary depending on supplier inventory. In some cases, components may need to be sourced from overseas before being assembled in Taiwan and imported to Australia.
As an Australian business, we handle the entire import process—no foreign currency, no customs forms. Just local delivery and reliable service.
Ultra-Sensitive Differential Pressure Monitoring for HVAC & Cleanroom Applications
The PMM06-D Differential Pressure Transmitter is a high-sensitivity sensor built to detect minute air pressure differences in hospital isolation rooms, cleanrooms, laboratories, and industrial automation systems.
Featuring thermal mass (hot-wire) sensing technology, the PMM06-D offers exceptional resolution and low zero-point drift over time, ensuring long-term stability for environments requiring precision pressure control.
With a compact aluminum housing, analog + RS-485 Modbus RTU + relay outputs, and a 2" LCD with user-friendly buttons, this sensor integrates easily into modern HVAC and BMS infrastructure.
Key Features
- Hot-wire thermal mass sensing for ultra-low differential pressures
- Measurement ranges: ±10 / ±25 / ±50 / ±100 Pa
- Accuracy: ±1% F.S. + 0.1 Pa | Resolution: up to 0.05 Pa
- Analog output: 4–20 mA or 0–10 V, with relay + RS-485 Modbus RTU
- Square root extraction function supported for flow rate correlation
- Compact aluminum/plastic housing, IP65 rated
- 2″ backlit LCD screen with button interface for easy on-site setup
- Units: Pa, mbar, hPa, kPa, mmWS, inH₂O, mmHg
- DIN rail/wall mount with M12 8-pin connector
- CE Certified | Designed for HVAC, pharma, biotech, and lab control
Applications
- Negative pressure isolation rooms in hospitals
- Cleanroom differential pressure control (pharma, biotech, electronics)
- Laboratory airflow and pressure balancing
- Industrial HVAC static pressure monitoring
- AHU filter pressure drop monitoring
- Smart Building and BMS integration
- Pressure-based flow rate monitoring (with square root output function)
Highlights for Feature Cards
- ±10 / ±25 / ±50 / ±100 Pa range options
- 4–20 mA / 0–10 V + RS-485 + relay output
- Hot-wire sensing = high sensitivity, low drift
- LCD display with real-time pressure readout
- IP65 housing, CE certified
- Resolution: 0.05 Pa | Setup: 1s sampling rate
Available Variants
|
Model |
Output Options (All with RS-485 + Relay) |
Measuring Range |
Display |
Power Supply |
IP Rating |
|
02-2-M |
4–20 mA or 0–10 V |
±10 Pa |
Yes |
24 V DC ±10% |
IP65 |
|
05-2-M |
4–20 mA or 0–10 V |
±25 Pa |
Yes |
24 V DC ±10% |
IP65 |
|
10-2-M |
4–20 mA or 0–10 V |
±50 Pa |
Yes |
24 V DC ±10% |
IP65 |
|
20-2-M |
4–20 mA or 0–10 V |
±100 Pa |
Yes |
24 V DC ±10% |
IP65 |
Note: This product is built to order and not available for direct online purchase.
Please refer to the Datasheet below for detailed specifications and available configurations.
Once reviewed, click “Enquire Now” to contact us. We’ll help match the right model to your installation type, output requirements, and display preferences.
