FY Series Digital Process Controller | PID / ON-OFF | Relay / Analog / SSR | FY400–FY900

FY Series Digital Process Controller | PID / ON-OFF | Relay / Analog / SSR | FY400–FY900

$245.00 AUD
$245.00 AUD
Sale Sold out
GST-Inclusive
Model
Enquire Now

High-Performance PID Controllers with Flexible I/O and Advanced Program Control

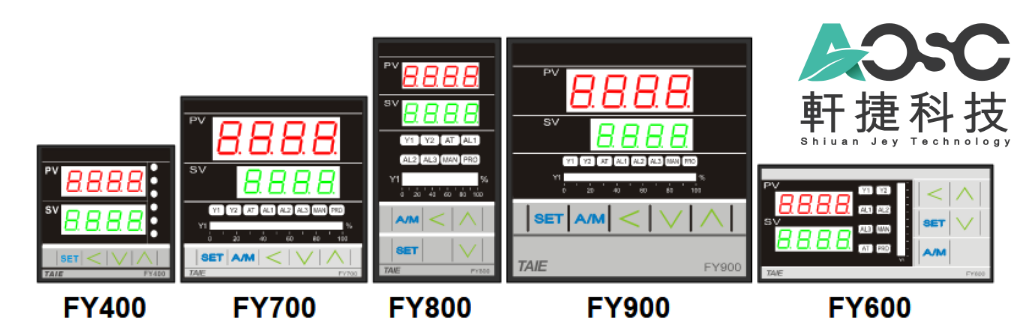

The FY Series Digital Process Controllers (FY400, FY600, FY700, FY800, FY900) are high-precision, panel-mount controllers designed for demanding industrial automation environments. With support for PID, ON-OFF, and programmable ramp/soak control, they feature multiple input types, customizable outputs, and fast 50 ms sampling for reliable process regulation.

Each model includes a bar-graph LED output display, multiple alarm settings, and IP65-rated front panels, making them suitable for everything from simple heating applications to complex process sequences.

Key Features

  • Input Types:
    • Thermocouples: K, J, R, S, B, E, N, T, W, PLII, L
    • RTD: PT100
    • Linear: 0–20 mA, 4–20 mA, 0–10 V, 1–5 V, 2–10 V, etc.
  • Output Options:
    • Relay, SSR drive, 4–20 mA, 0–10 V, 1–5 V (customizable)
  • Control Modes:
    • PID (with auto-tuning + Super SV), ON-OFF, Ramp/Soak
  • Accuracy: ±0.1%, 18-bit resolution
  • Sampling Time: 50 ms
  • Display: PV/SV dual-line with 10-segment output bar
  • Power Supply: 85–265 VAC or 24 VDC
  • Modbus RTU Communication
    • RS-485 interface, 2400–115200 bps
    • Supports HMI, SCADA, PLC integration
  • Advanced Features:
    • 144-segment program control
    • Heater Break Alarm (HBA)
    • Analog signal retransmission
    • Remote SV input
    • Position feedback motor valve control

Available Variants

Model

Output Configuration

Comm

Power

Notes

FY701-B01

Relay output only (0-10V)

None

AC 85–265V

Basic relay version

FY701-B0100B

Relay + Alarm 1

RS-485

AC 85–265V

With additional alarm set

FY701-B10100B

Relay + Alarm 1 + TRS

RS-485

AC 85–265V

Modbus version with alarm and relay output



Applications

  • Temperature & pressure control systems
  • Industrial ovens, kilns, and autoclaves
  • Environmental test chambers
  • Food, pharma, and plastics manufacturing
  • Motor valve or thyristor control panels
  • Energy, HVAC, and chemical process plants

Note: This product is customizable and can be built to order.
Please refer to the datasheet below for specifications and available configurations.

Once reviewed, click “Enquire Now” — we’ll help you select the right model based on your installation type and output requirements.
