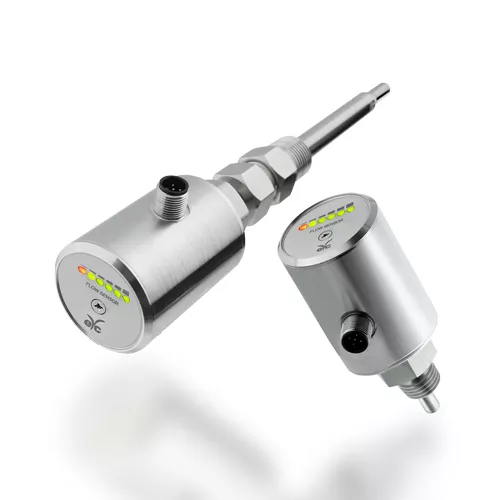

FTC05 Hot Wire Thermal Flow Switch
FTC05 Hot Wire Thermal Flow Switch
Price on Request
Important: This product is built to order and not available for direct online purchase.
Lead times may vary depending on supplier inventory. In some cases, components may need to be sourced from overseas before being assembled in Taiwan and imported to Australia.
As an Australian business, we handle the entire import process—no foreign currency, no customs forms. Just local delivery and reliable service.
Universal Thermal Flow Switch for Liquid, Oil, and Gas Monitoring
The FTC05 Hot Wire Thermal Flow Switch is a rugged, multi-purpose flow detection device designed for pumps, pipelines, lubrication systems, and water treatment applications. Built with an all-metal SUS304 housing, the FTC05 uses RTD-based thermal sensing to monitor flow conditions and detect level or movement in various media including water, oil, and gas.
Available with PNP, NPN, or Relay outputs, the FTC05 features fast response time, a high-visibility LED indicator, and compact IP65-rated housing. Installation options include G1/2", G1/4", or R1/2 thread mount, with quick setup via M12 connector.
Key Features
- Hot-wire thermal flow switch using RTD sensing
- Supports water, oil, and gas flow detection
- Output options: PNP / NPN / Relay
- LED indicator (Red, Yellow, Green) for flow state
- Adjustable set point using internal knob
- IP65 protection (option for IP67)
- Easy installation with G-thread or movable thread
- SUS304 all-metal body for durability
- Withstands up to 10 bar pressure
- Fast response time: ≤3 sec | Warm-up: ≤10 sec
- CE Certified | Made in Taiwan
Applications
- Hydraulic and lubrication systems
- Pump protection and dry-run prevention
- Industrial cooling lines
- Leak monitoring in fluid systems
- Flow presence detection in gas or liquid pipelines
- Water treatment systems
- General industrial process automation
Highlights for Feature Cards
- RTD-based thermal sensing
- Relay or transistor output (NPN/PNP)
- IP65-rated metal housing
- Fast response: ≤3s
- G1/2", G1/4", R1/2 mount options
- LED visual status indicator
Available Variants
|
Model |
Output Options |
Mount Type |
Power Supply |
Media Range |
IP Rating |
|
FTC05-N/P/R-1-1 |
NPN / PNP / Relay |
G1/2" Screw Thread |
DC 24 V ±10% |
Water: 1–200 cm/s |
IP65 (Opt. IP67) |
|
FTC05-N/P/R-2-1 |
NPN / PNP / Relay |
G1/4" Screw Thread |
DC 24 V ±10% |
Water: 1–200 cm/s |
IP65 (Opt. IP67) |
|
FTC05-N/P/R-3-1 |
NPN / PNP / Relay |
Ø12 + R1/2" Movable Thread |
DC 24 V ±10% |
Water: 1–200 cm/s |
IP65 (Opt. IP67) |
Note: This product is built to order and not available for direct online purchase.
Please refer to the Datasheet below for detailed specifications and available configurations.
Once reviewed, click “Enquire Now” to contact us. We’ll help match the right model to your installation type, output requirements, and display preferences.
