FE Series Digital Process Controller | PID / ON-OFF | Compact & Cost-Effective | FE400–FE900

FE Series

Price on Request

Important: This product is built to order and not available for direct online purchase.

Lead times may vary depending on supplier inventory. In some cases, components may need to be sourced from overseas before being assembled in Taiwan and imported to Australia.

As an Australian business, we handle the entire import process—no foreign currency, no customs forms. Just local delivery and reliable service.

Shipping calculated at checkout.
Enquire Now
Request a Quote
Australian Support
Warranty Backed
Free Domestic Delivery
Technical Support

Specifications

Documentation & Downloads

Shipping & Lead Times

Standard products are usually dispatched within 1–2 business days. Free shipping on domestic orders over $599.

Enquiry-only products are imported to order. Typical lead time varies — contact us for current availability.

Warranty & Support

All products are covered by our standard warranty. Australian-based technical support is available via email and phone during business hours.

View full warranty terms

Standards & Compliance

Standards and compliance documentation is available on request for this product. Contact us for specific compliance information.

Compact & Affordable PID Controllers for Industrial Process Control

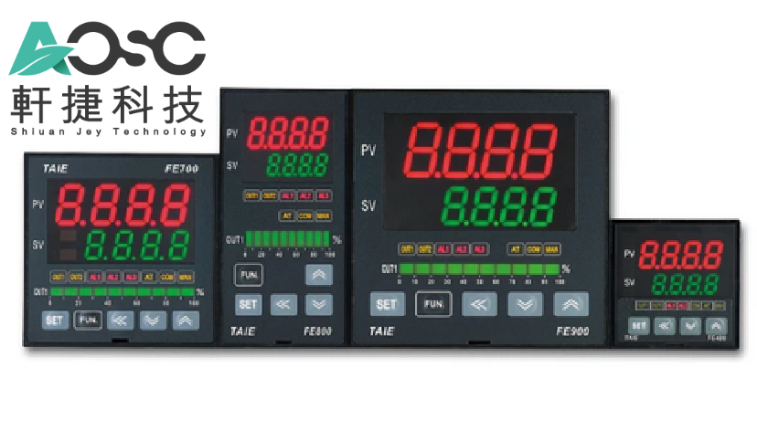

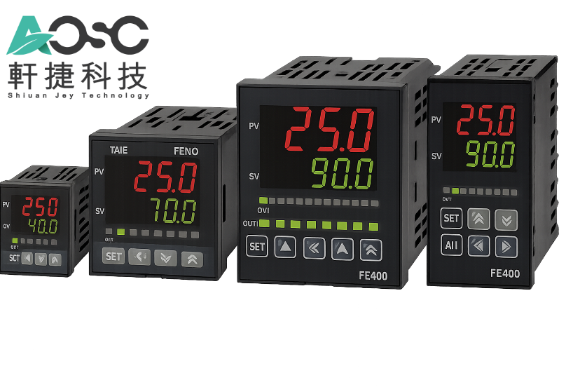

The FE Series (FE400, FE700, FE800, FE900) delivers robust PID and process control in a compact, DIN-mount format, engineered for precision, speed, and cost efficiency. Ideal for temperature regulation and process automation across HVAC systems, ovens, kilns, packaging machinery, and industrial control panels, this controller series combines power and flexibility.

With a 50 ms high-speed sampling rate, 0.1% full-scale accuracy, and selectable PID / ON-OFF / ramp-soak modes, the FE Series is built for stable control in dynamic environments. Models offer multiple alarm outputs, analog retransmission, SSR drive, and relay options to fit varied control schemes.

Each unit supports Modbus RTU (RS-485) for seamless integration with PLCs, HMIs, and SCADA systems. Designed with strong EMI immunity and backed by CE certification, the FE Series ensures reliable performance even in electrically noisy environments.

Key Features

  • Input Types
    • Thermocouples (K, J, R, S, B, E, N, T, W, PLII, L)
    • RTD (Pt100)
    • Analog: 0–20 mA, 4–20 mA, 0–10 V, 1–5 V, 2–10 V, etc.
  • Control Modes
    • ON-OFF, PID, PI, P, with Auto-Tuning
    • Super SV: Suppresses overshoot, speeds up stabilization
    • Heating/Cooling control with motor valve or SSR
  • Outputs (customizable)
    • Relay, SSR Drive, Analog 4–20 mA / 0–10 V
    • Up to 3 alarms (AL1, AL2, AL3)
    • Transmission (PV, SV, MV) + Remote SV Input
  • Sampling Time: 50 ms
  • Display: High-intensity LED with wide view angle
  • Power: AC 85–265 V / Optional DC 24 V
  • Housing Depth: 67 mm (except FE400)
  • EMC Tested: Strong anti-interference capabilities
  • Communication: RS-485 | Modbus RTU | Up to 115200 bps
  • Protection: Reverse polarity, over-voltage, short-circuit

Models

Model

Panel Size (mm)

Depth

Best For

FE400

48 x 48

91 mm

Compact panels & OEM kits

FE700

72 x 72

73 mm

General industrial automation

FE800

48 x 96

73 mm

Vertical panel installations

FE900

96 x 96

73 mm

Full-featured, large displays



Applications

  • Temperature control in ovens, kilns, and dryers
  • HVAC, ventilation, and building management systems
  • Packaging and sealing machines
  • PLC and SCADA-integrated systems
  • Industrial process heating/cooling

Note: This product is built to order and not available for direct online purchase.
Please refer to the Datasheet below for detailed specifications and available configurations.

Once reviewed, click “Enquire Now” to contact us. We’ll help match the right model to your installation type, output requirements, and display preferences.
