High-Performance Compact Drive for Industrial Motor Control

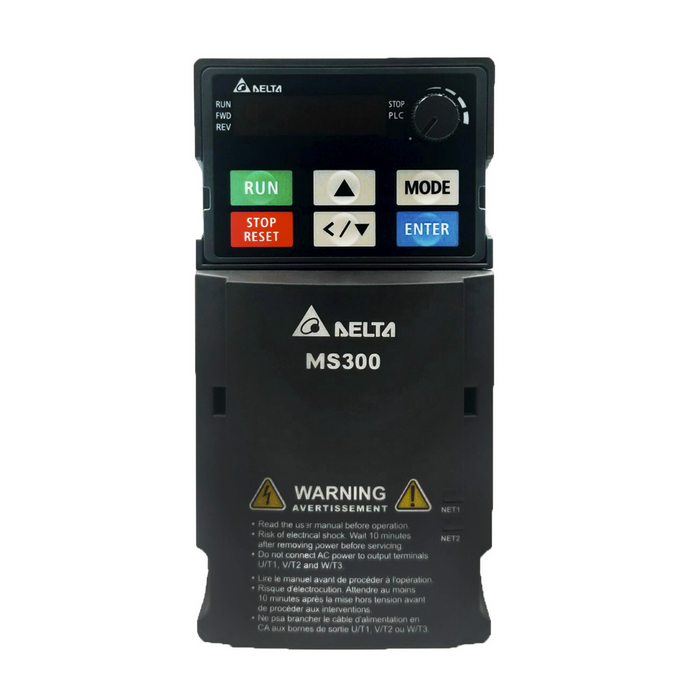

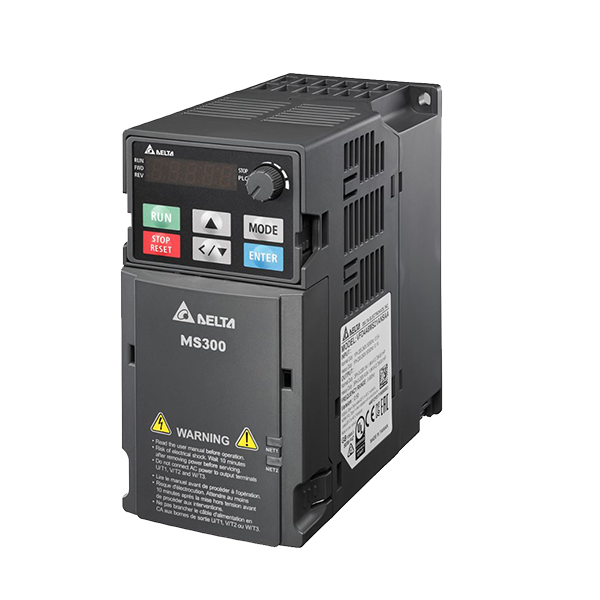

The Delta MS300 Series Variable Frequency Drive (VFD) is a next-generation compact drive engineered for efficient, precise, and flexible motor control across HVAC, BMS, and industrial automation systems.
Manufactured in Taiwan, the MS300 combines sensorless vector (SVC) and field-oriented control (FOC) with an integrated 2 K-step PLC, delivering stand-alone logic control in a body 40 % smaller than previous models.
It supports IM and PM motors, includes a Safe Torque Off (STO) function certified to SIL 2 / PL d, and offers built-in RS-485 (Modbus RTU) plus optional EtherNet/IP, PROFINET, EtherCAT, or DeviceNet cards for easy system integration.
Reliable, compact, and quick to commission, the MS300 is ideal for upgrading existing panels or building new energy-efficient machines.
Key Features
- Compact vector control drive — 40 % smaller body for space optimisation
- Supports IM and PM motors with SVC / FOC sensorless control
- Built-in PLC (2 K steps) for standalone logic control
- Safe Torque Off (STO) – SIL 2 / PL d certified for machine safety
- Built-in Class C2 EMC filter and brake chopper (no external components required)
- 200 % starting torque at 0.5 Hz for dynamic loads
- Deceleration Energy Backup (DEB) prevents motor damage during power loss
- Built-in RS-485 (Modbus RTU) with optional communication cards:
EtherNet/IP, PROFINET, EtherCAT, CANopen, DeviceNet - Side-by-side mounting from –20 °C to +50 °C ambient temperature
- Removable keypad and USB port for fast configuration and parameter backup
- IP20, IP40, and IP66 models available
Applications
- HVAC fans, blowers, and pump systems
- Building Management Systems (BMS) and process automation
- Conveyors, packaging and material-handling lines
- Water and wastewater treatment systems
- Machine tools, woodworking, and textile machines
- OEM automation panels and drive retrofits
Models
|
Model |
Input Voltage |
Motor Power |
Rated Output Current (Normal) |
IP Rating |
EMC Filter |
Notes |
|
VFD4A8MS23 |
230 V 3-phase |
0.75 kW (1 HP) |
5 A |
IP20 |
Optional |
Standard model |
|
VFD7A5MS23 |
230 V 3-phase |
1.5 kW (2 HP) |
8 A |
IP20 |
Optional |
Standard model |
|
VFD17AMS23 |
230 V 3-phase |
3.7 kW (5 HP) |
17 A |
IP20 |
Optional |
Standard model |
|
VFD25AMS23 |
230 V 3-phase |
5.5 kW (7.5 HP) |
27 A |
IP20 |
Optional |
Standard model |
|
VFD33AMS23 |
230 V 3-phase |
7.5 kW (10 HP) |
36 A |
IP20 |
Optional |
Standard model |
(Note: The above models are what is currently available for direct quotation. For other models please refer to below)
Note: This product is built to order and not available for direct online purchase.
Please refer to the Datasheet below for detailed specifications and available configurations.
Once reviewed, click “Enquire Now” to contact us. We’ll help match the right model to your installation type, output requirements, and display preferences.
