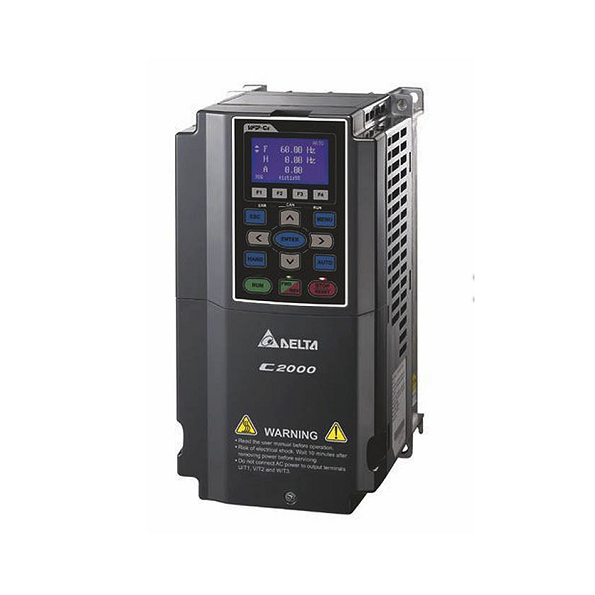

Delta C2000 Series Variable Frequency Drive (VFD)
Delta C2000 Series Variable Frequency Drive (VFD)
Price on Request
Important: This product is built to order and not available for direct online purchase.
Lead times may vary depending on supplier inventory. In some cases, components may need to be sourced from overseas before being assembled in Taiwan and imported to Australia.
As an Australian business, we handle the entire import process—no foreign currency, no customs forms. Just local delivery and reliable service.
Advanced Vector Control Drive for Industrial Automation and Motion Systems
The Delta C2000 Series Variable Frequency Drive (VFD) is a high-performance, all-purpose drive engineered for precision motor control, energy efficiency, and robust system integration. Designed and manufactured in Taiwan, it provides speed, torque, and position control for both induction (IM) and permanent magnet (PM) motors, making it a versatile solution for complex industrial and HVAC applications.
With built-in PLC functionality, Safe Stop (STO) safety, DC reactor, and EMC filtering, the C2000 combines reliability with intelligent control. Optional communication modules support PROFINET, EtherNet/IP, EtherCAT, DeviceNet, and CANopen, allowing seamless integration into modern BMS and SCADA systems.
Engineered for performance, the C2000 Series features field-oriented control (FOC), four-quadrant torque control, and a dual-rating design (Normal/Heavy Duty) - ideal for demanding applications such as cranes, conveyors, compressors, and machine tools.
Key Features
- Vector control with speed / torque / position modes
- Dual-rating design for Normal and Heavy Duty operation
- Built-in PLC (10 K steps) for standalone logic control
- Safe Stop (STO) safety function (SIL2 / PL d)
- Built-in DC reactor and EMC filter for reduced harmonics
- Auto energy-saving and Deceleration Energy Backup (DEB) functions
- Integrated braking unit (frame A–C); optional for larger frames
- Supports both asynchronous and permanent-magnet motors
- Modular design with hot-pluggable keypad and easy fan replacement
- Communication options: Modbus RTU/TCP, CANopen, DeviceNet, EtherNet/IP, PROFINET, EtherCAT
- Global certifications: UL, CE, TUV, C-Tick, RoHS, RCM
Applications
- HVAC fan and pump control
- Building Management and energy systems
- Conveyors, lifts, and material-handling equipment
- Water and wastewater treatment
- Machine tools, packaging, and textile systems
- Cranes, hoists, and regenerative drive applications
Models
|
Model |
Input Voltage |
Motor Power |
Rated Output Current (Normal) |
IP Rating |
EMC Filter |
Notes |
|
VFD037C43A-21 |
460 V 3-phase |
3.7 kW (5 HP) |
9 A |
IP20 / NEMA 1 |
No |
Standard model |
|
VFD075C43A-21 |
460 V 3-phase |
7.5 kW (10 HP) |
18 A |
IP20 / NEMA 1 |
No |
Standard model |
|
VFD110C43A-21 |
460 V 3-phase |
11 kW (15 HP) |
24 A |
IP20 / NEMA 1 |
No |
Standard model |
|
VFD300C43A-21 |
460 V 3-phase |
30 kW (40 HP) |
60 A |
IP20 / NEMA 1 |
No |
Standard model |
(Note: The above models are what is currently available for direct quotation. For other models please refer to below)
Note: This product is built to order and not available for direct online purchase.
Please refer to the Datasheet below for detailed specifications and available configurations.
Once reviewed, click “Enquire Now” to contact us. We’ll help match the right model to your installation type, output requirements, and display preferences.
Downloads:
