AVC-310 / AVC-311 CO2 Transmitters – Wall & Duct Mount | RS-485 + Analog

$550.00 AUD
$550.00 AUD
Sale Sold out
Shipping calculated at checkout.
Model
Enquire Now
Australian Support
Warranty Backed
Free Domestic Delivery
Technical Support

Specifications

Documentation & Downloads

Shipping & Lead Times

Standard products are usually dispatched within 1–2 business days. Free shipping on domestic orders over $599.

Enquiry-only products are imported to order. Typical lead time varies — contact us for current availability.

Warranty & Support

All products are covered by our standard warranty. Australian-based technical support is available via email and phone during business hours.

View full warranty terms

Standards & Compliance

Standards and compliance documentation is available on request for this product. Contact us for specific compliance information.

Professional CO2 Monitoring for Indoor Air Quality & Demand-Controlled Ventilation

The AVC-31X Series CO2 transmitters - manufactured by AECL and OEM-branded by A.C.S.C. (Shiuan Jey Technology) are high-accuracy NDIR-based sensors designed for real-time CO₂ monitoring in HVAC, building automation, and industrial environments across Australia.

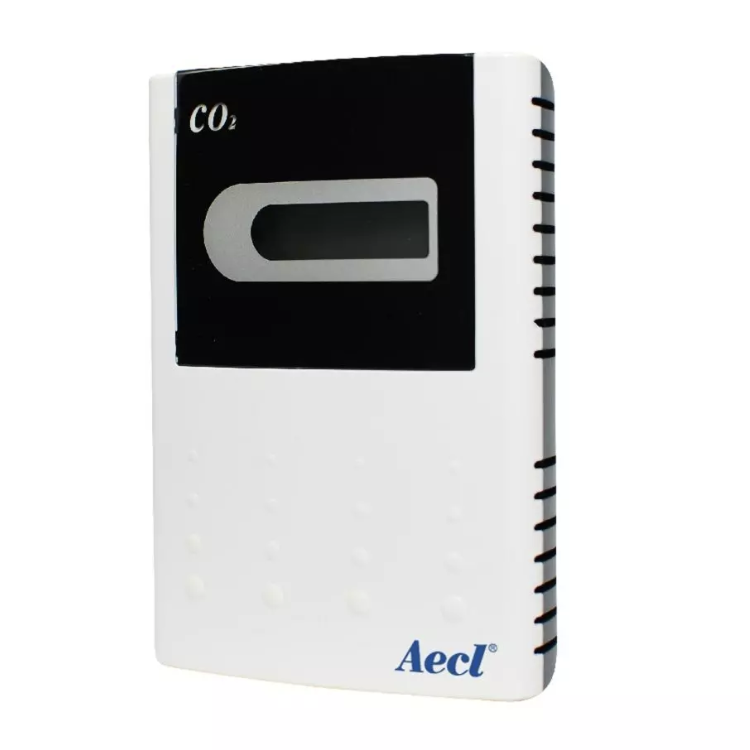

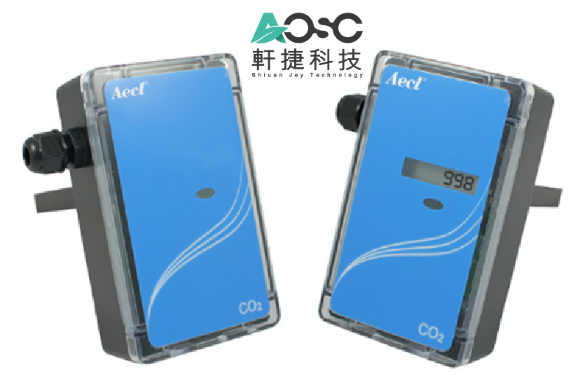

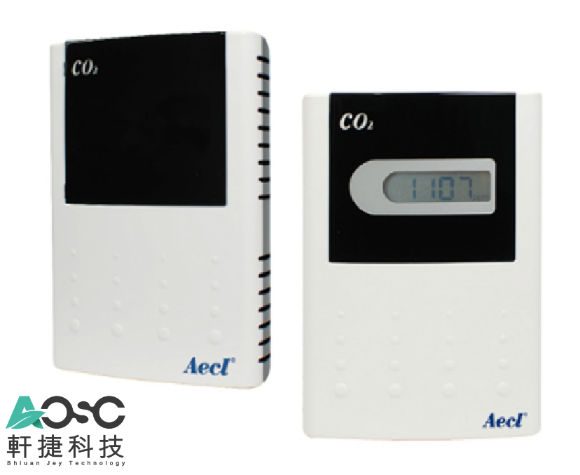

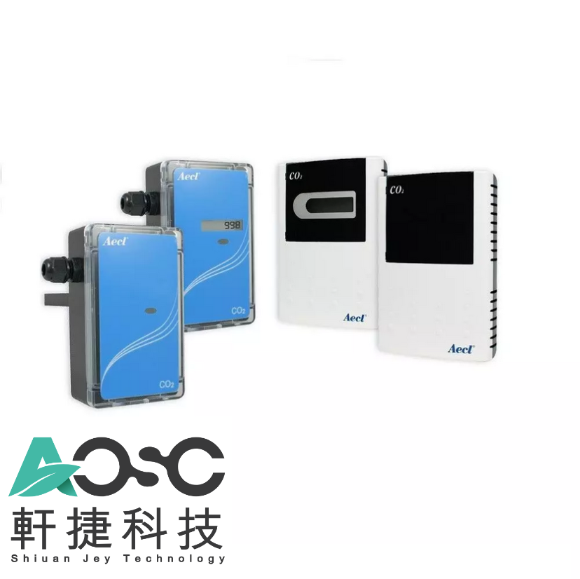

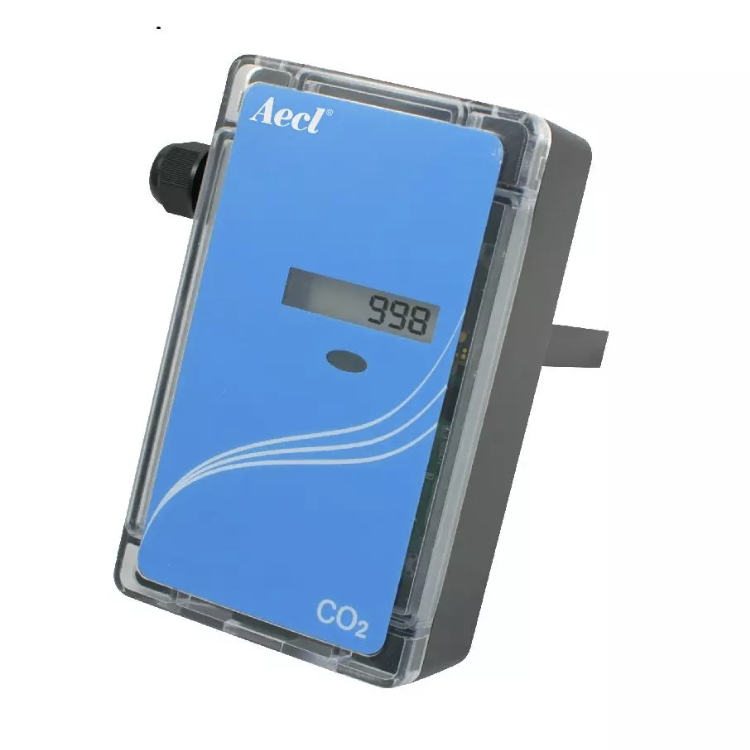

Available in wall and duct mount configurations, these transmitters integrate seamlessly into ventilation control systems using Modbus RTU and analog output formats (select models), with support for relay activation and optional LCD displays.

The AVC-310 models provide reliable CO₂ measurement only, while AVC-311 models offer 3-in-1 sensing (CO₂ + temperature + humidity) for comprehensive air quality control.

These units are ideal for applications requiring precision sensing, RS-485 integration, and IP65-rated duct performance - whether for classrooms, grow rooms, or BMS-connected infrastructure.

Key Features

  • NDIR Gold-Plated Infrared Sensor with Auto Baseline Correction
  • Models available with CO₂ only or CO₂ + Temp & RH (CMOS sensor)
  • Analog Output (4–20 mA / 0–10 V) – switchable (select models)
  • Digital Output: RS-485 (Modbus RTU) standard
  • Optional SPDT Relay Output for demand ventilation trigger
  • Optional LCD display for local real-time monitoring
  • CO₂ Measurement Range: 0–2000 ppm or 0–9999 ppm
  • Accuracy: ±30 ppm ±3% (up to 2000 ppm), ±70 ppm ±3% (above 2000 ppm)
  • Power: 12–36 VDC / 24 VAC
  • CE & FCC Certified
  • Designed and Made in Taiwan

Applications

  • Smart Building Management Systems (BMS)
  • Demand-Controlled Ventilation (DCV)
  • Offices, Schools, Classrooms, Conference Spaces
  • Agricultural Grow Rooms, Greenhouses, Mushroom Farms
  • Museums, Libraries, Train Stations, Warehouses
  • Wineries, Breweries, Labs, and Indoor Processing Plants

✅ Available Variants

Model

Mounting Style

Measured Parameters

Output Signals

Display

AVC-310W6D-M

Wall Mount

CO₂ only

RS485 / LoRa

Yes

AVC-311W6D-M

Wall Mount

CO₂ + Temp + RH

RS485 / LoRa

Yes

AVC-310D4D-M

Duct Mount

CO₂ only

RS485 only

Yes

AVC-311D4D-M

Duct Mount

CO₂ + Temp + RH

RS485 only

Yes



Note: This product is customizable and can be built to order.
Please refer to the datasheet below for specifications and available configurations.

Once reviewed, click “Enquire Now” — we’ll help you select the right model based on your installation type and output requirements.
