A/TT100-D-12"-4 Series | Duct RTD Temperature Transmitter | 100Ω PT100 | 4–20 mA | 12" Probe
A/TT100-D-12"-4 Series | Duct RTD Temperature Transmitter | 100Ω PT100 | 4–20 mA | 12" Probe
Couldn't load pickup availability
Precision RTD Temperature Monitoring for Ducted HVAC Systems
The A/TT100-D Series is a high-accuracy duct temperature transmitter designed for air handling units, rooftop HVAC systems, and mixed or return air duct monitoring. Each unit uses a platinum 100Ω RTD (PT100) sensor and delivers a reliable 4–20 mA loop-powered output, ensuring compatibility with BMS/BAS platforms.
Factory-calibrated to DIN EN 60751 Class A accuracy and equipped with a rugged 12" (30.48cm) 304 stainless steel probe, these transmitters offer excellent stability and fast response. Choose from four enclosure options (NEMA 1, 3R, 4X, or plenum-rated) to match your site’s environmental conditions.
Key Features
- Sensor Type: 100Ω Platinum RTD (PT100), DIN EN 60751 Class A
- Output Signal: 4–20 mA (2-wire loop-powered)
- Accuracy: ±0.06% RTD | ±0.2% Calibrated (<260°C spans)
- Probe: 12" Stainless Steel, ¼" diameter
- Response Time: 8 seconds (63% step)
- Power Supply: 8.5–32 VDC
- Thermal Drift: ≤ ±0.04%/°F for <100°F spans
- Certifications: RoHS2, WEEE
- Warranty: 5-Year Limited Warranty
Applications
- Rooftop Units (RTUs)
- Supply / Return / Mixed Air Monitoring
- AHUs & VAV Boxes
- Building Management Systems (BMS)
- Commercial HVAC Control
- Energy Platforms & Monitoring Systems

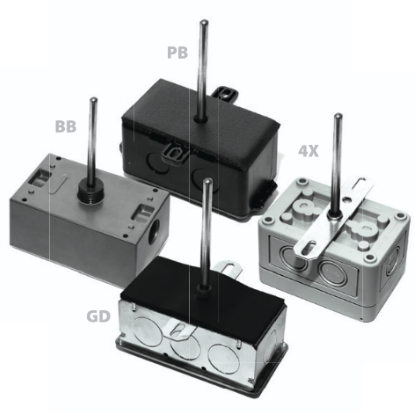

Models
|
Model |
Enclosure Type |
IP Rating |
Application Use |
|

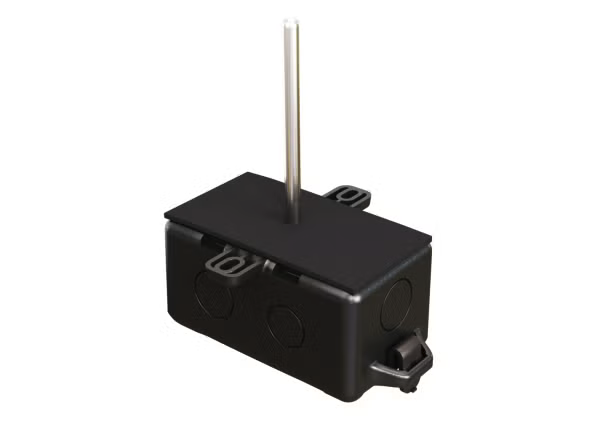

A/TT100-D-12"-4-PB |
ABS Plastic (Plenum Rated) |
IP10 |
Indoor HVAC ducts |
|

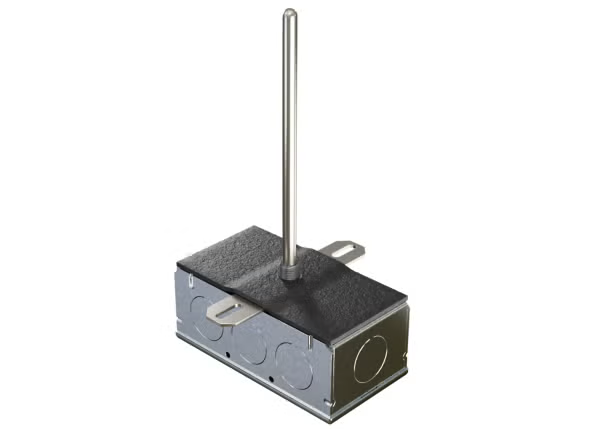

A/TT100-D-12"-4-GD |
Galvanized Steel (NEMA 1) |
IP10 |
Indoor mechanical rooms |
|

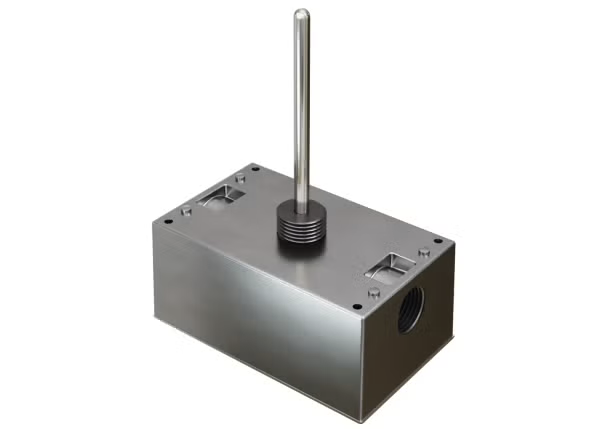

A/TT100-D-12"-4-BB |
Aluminum Bell Box (NEMA 3R) |
IP14 |
Semi-exposed rooftops |
|

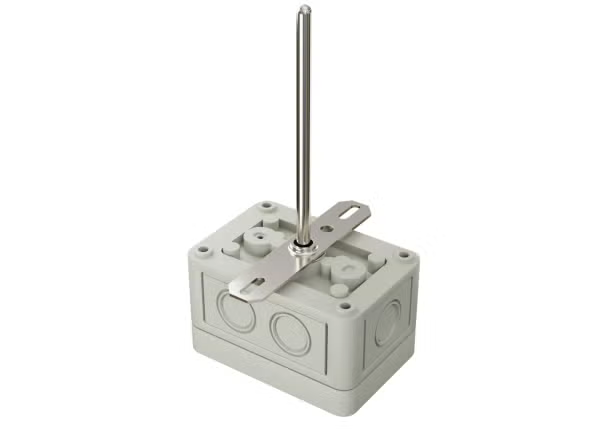

A/TT100-D-12"-4-4X |
Polystyrene Plastic (NEMA 4X) |
IP66 |
Outdoor / High Humidity |
Note: Need a different size? Simply click the ‘Make an Enquiry’ button above to request a custom quote.
