A60KP Centralized HVAC Control System | Modbus RS-485 | Touch Panel

Intelligent Central HVAC Monitoring — Designed for Scalable Building Automation

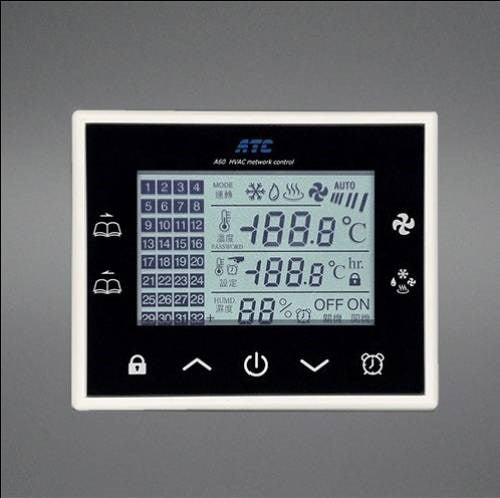

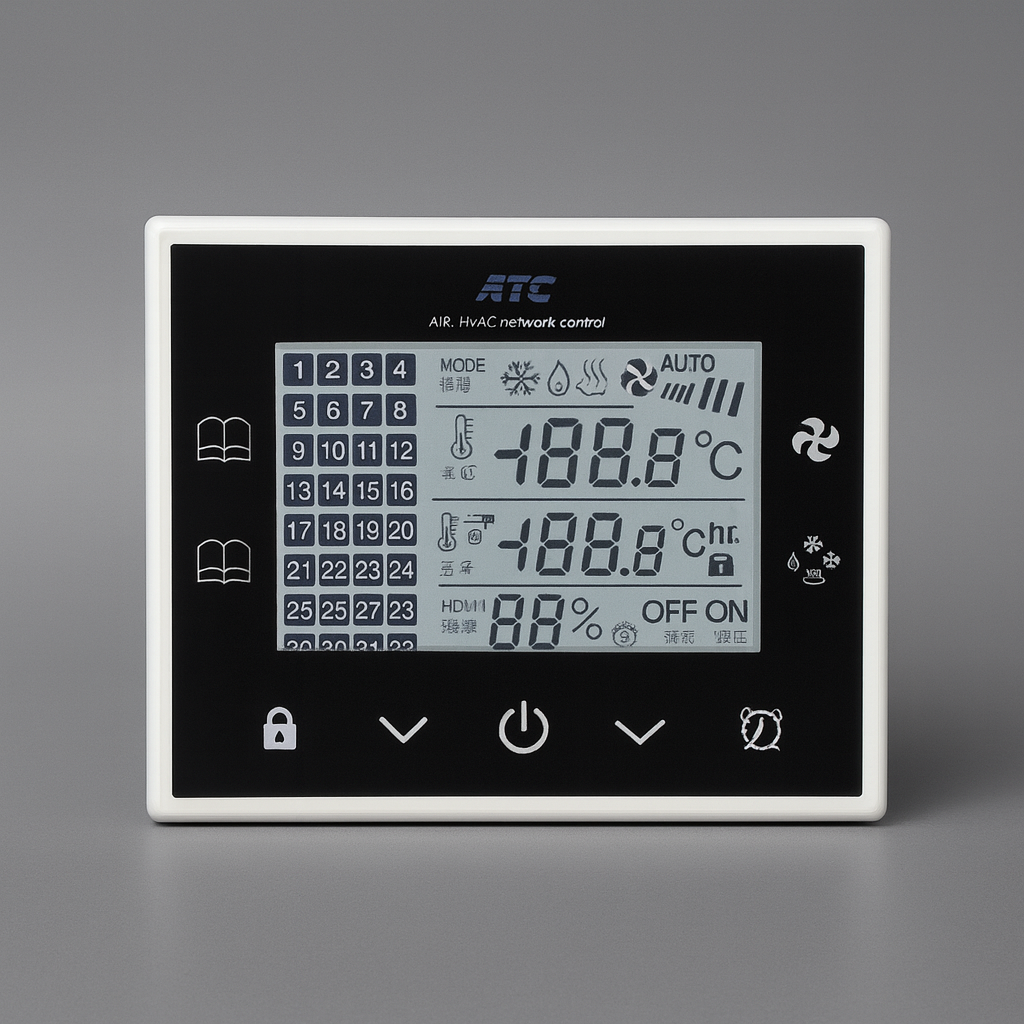

The A60KP is a centralized HVAC control system engineered for real-time management and monitoring of Fan Coil Units (FCUs) across large commercial and industrial buildings. It serves as a central monitoring panel and communication gateway, consolidating HVAC data and streamlining control via dual-channel Modbus RTU communication.

Equipped with a 4" LCD backlit screen, intuitive CVD capacitive touch buttons, and bilingual graphic interface (English/Chinese), it provides operators with a user-friendly yet powerful platform for full-building HVAC oversight. With accurate temperature/humidity control, real-time error alerts, and support for up to 2520 FCU connections, the A60KP is ideal for centralized facility environments such as hotels, office towers, and smart campuses.

Key Features

• Centralized FCU Control: Monitor & manage up to 2520 FCUs via uplink/downlink architecture
• Large Backlit Display: 4” LCD (80×50mm) with English & Chinese UI and graphic indicators
• Capacitive Touch Operation: Stable CVD keys ensure smooth and accurate input
• High-Precision Display: Temperature and setpoint shown to 0.1°C resolution
• Smart Power Recovery: Built-in reset function retains user settings after power loss
• Dual Modbus RTU Channels: Functions as a gateway for host system integration
• Flexible Fan Speed Control: 3-speed or up to 20-speed (XE mode) manual or auto
• Advanced Operating Modes: Cooling, heating, humidity control, fan only, auto

Applications

• Hotel HVAC Central Control
• Commercial Building Energy Management
• Office Tower FCU Control
• Data Center Cooling Oversight
• Smart Campus Central HVAC Systems
• Industrial HVAC Monitoring and Control

Downloads:

• Datasheet
