Streamlined Climate Control with Precision

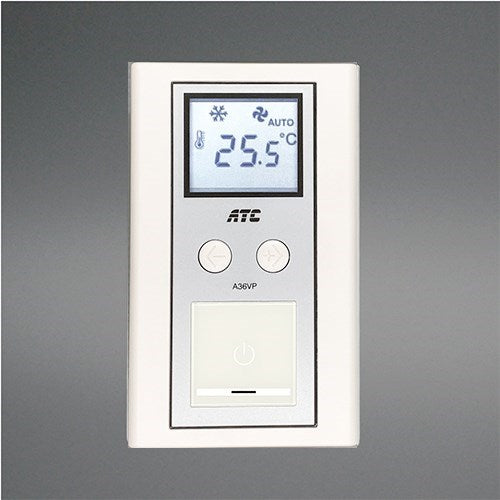

The A36VP LCD Digital Thermostat offers a minimalist, user-friendly design with only 3 essential keys: Up, Down, and Power, making it the perfect choice for environments where simplicity meets functionality. With RS-485 Modbus integration, temperature precision, and optional humidity sensing, it's engineered for professional performance across HVAC and BMS systems.

Key Features:

  • 0.1°C Temperature Accuracy for precise climate control
  • Wide Temp Range: -50°C to 120°C set range | -55°C to 125°C detection range
  • Minimalist Design: Only 3 intuitive keys (Up, Down, Power) for streamlined operation
  • LCD Backlit Display with compound press key interface
  • MODBUS RTU Protocol: Built-in RS-485 port (9600/19200 bps)
  • Humidity Control (Optional): Integrated sensor module (20–90%, 1% resolution)
  • Flexible Fan Motor Support: Compatible with both 3-speed (XF) and EC (XE) motors
  • Air Volume Control: 3-speed or 20-speed, Auto or Manual
  • Operating Modes: Cool / Heat / Humidity / Fan Only / Auto
  • Remote Control Compatible: Works with optional infrared receiver (R30RC)

Dimensions:

  • Main Panel: 120 × 72 × 15 mm
  • Controller Box: 115 × 68 × 38 mm

Technical Specifications:

  • Power Supply: AC 90–240V, 50/60Hz
  • Temperature Resolution: 0.1°C
  • Wiring Distance (Panel ↔ Controller): Up to 100m (0.5mm² x 4C)
  • Output Capacity:
    • Fan: 5A @ 220VAC
    • Valve / Chiller: 3A @ 220VAC
  • Sensor Type: Digital thermometer
  • Humidity Sensor (Optional): Integrated IC module

Note: This product is built to order and not available for direct online purchase.
Please refer to the Datasheet below for detailed specifications and available configurations.

Once reviewed, click “Enquire Now” to contact us. We’ll help match the right model to your installation type, output requirements, and display preferences.
