A32 LCD Digital Thermostat | RS-485 Modbus | Temp & Humidity Control
SKU:A32 (6 Button)
Price on Request
Important: This product is built to order and not available for direct online purchase.
Lead times may vary depending on supplier inventory. In some cases, components may need to be sourced from overseas before being assembled in Taiwan and imported to Australia.
As an Australian business, we handle the entire import process—no foreign currency, no customs forms. Just local delivery and reliable service.
Specifications
Specifications
Documentation & Downloads
Documentation & Downloads
Shipping & Lead Times
Shipping & Lead Times
Standard products are usually dispatched within 1–2 business days. Free shipping on domestic orders over $599.
Enquiry-only products are imported to order. Typical lead time varies — contact us for current availability.
Warranty & Support
Warranty & Support
All products are covered by our standard warranty. Australian-based technical support is available via email and phone during business hours.
Standards & Compliance
Standards & Compliance
Standards and compliance documentation is available on request for this product. Contact us for specific compliance information.
Smart, Compact Climate Control — Built for Modern Systems

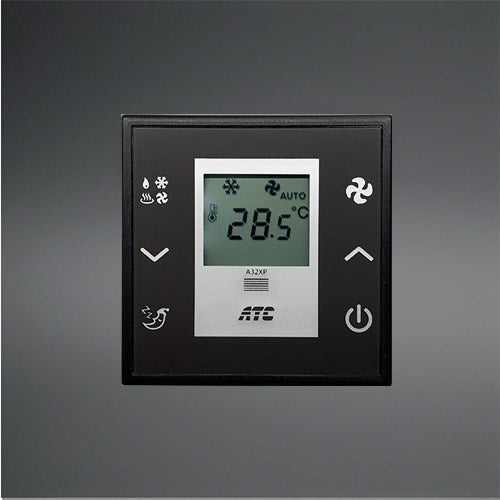

The A32 LCD Digital Thermostat delivers high-precision environmental control in a sleek, European-standard panel size (86x86 mm). Designed for smart buildings and HVAC/BMS automation, it supports RS-485 communication, optional humidity sensing, and flexible fan motor integration.
Key Features:
- 0.1°C Temperature Accuracy for tight control
- Set Range: -50°C to 120°C | Detection Range: -55°C to 125°C
- Backlit LCD Display with CVD Graphic Touch Keys
- RS-485 Modbus RTU Protocol, 9600/19200 bps for automation compatibility
- Air Volume Control: Supports both 3-speed XF and EC XE fan motors
- Operation Modes: Cool / Heat / Humidity / Fan Only / Auto
- Optional Humidity Sensor: 20–90% range, 1% resolution
- Remote Control (Optional): Infrared module compatible with R30RC
Dimensions:
- Front Panel: 86 x 86 x 14.5 mm (European standard)
- Controller Box: 115 x 68 x 38 mm
Technical Specifications:
- Input Voltage: AC 90–240V, 50/60Hz
- Output Load: Fan (5A/220VAC), Valve/Chiller (3A/220VAC)
- Communication Distance: Up to 100m via 0.5mm² x 4C cable
- Sensor Type: Digital temperature
Note:
Note: This product is built to order and not available for direct online purchase.
Please refer to the Datasheet below for detailed specifications and available configurations.
Once reviewed, click “Enquire Now” to contact us. We’ll help match the right model to your installation type, output requirements, and display preferences.
Downloads:
